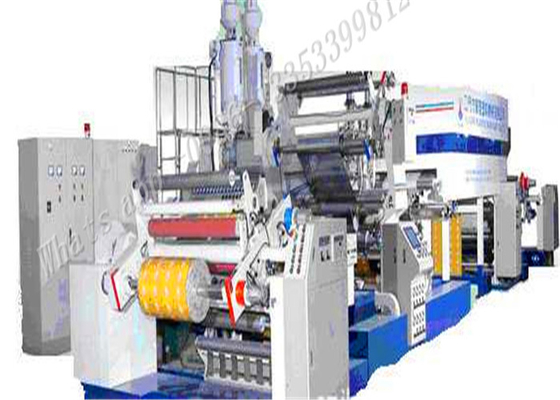

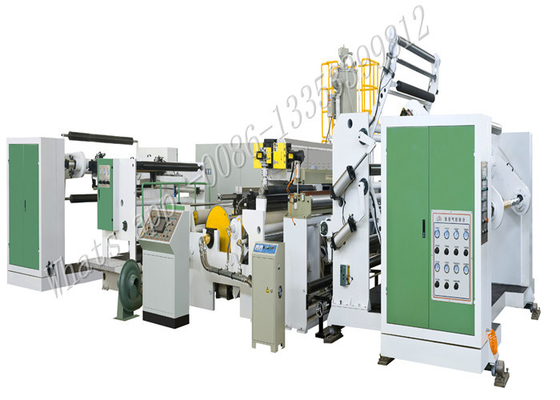

Plastic LDPE / LDPP Lamination Coating Machine 150mm/min 240 kg/h

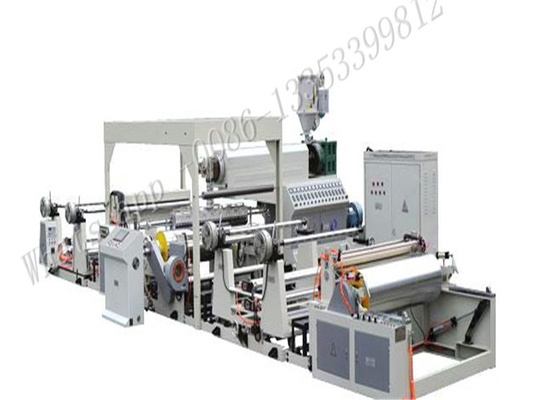

Large Image : Plastic LDPE / LDPP Lamination Coating Machine 150mm/min 240 kg/h

Product Details:

Place of Origin:	Ruian
Brand Name:	shelly
Certification:	CE
Model Number:	SJ-900

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Export wooden case

Contact Now

Detailed Product Description

Name:	Lamination Coating Machine	Material:	Pe Pp
Speed:	10-200 M/min	Color:	As Requirements
PLC:	Controlled	Inverter:	Delta
Motor:	ABB	Finished Products:	Craft Paper Rolls
Machine Size:	128000-2700-3500mm	Weight:	105000 Kgs
Highlight:	industrial laminating machine , automatic lamination machine

1300 High Speed Plastic Extrusion Lamination Coating Machine For PE PP Coating For Paper

Specifications

1) Popular laminating machine in indonesia
2) Automation more advance
3) Environmental protection
4) Uniform thickness coating

Application

1) This is the most popular laminating machine,it is the upgraded from SCF.

2) Use LDPE and LDPP as raw material to compound with base material such as paper,nonwoven,woven fabric and foil after extrusion,then formed the film on the base material surface.

3) It is widely used in label paper,kraft paper,release paper,cup paper,silicon paper,medical non-woven fabrics,non-woven fabrics,geotextile non-woven fabrics,waterproof building material non-woven fabric,onion bags lamination, bopp bags,etc.

Features

1) Use the independent electrical control cabinet, PLC human-computer to control mechanical, electrical and pneumatic.

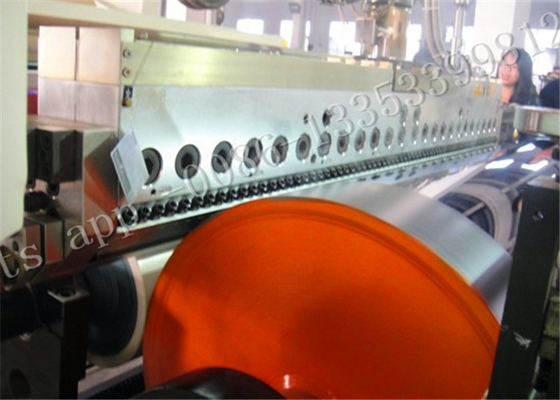

2) The die of extruder uses the high precision die,which has dual-directional adjustment function.

3) With double position automatic net change device to make the cutting and changing rolls automatic.

4) Finished products have good effect on peeling strength and sealing,high uniformity.

Technical Parameter

Model	1300
Length of die lip	1350mm
Width of coating film	600-1200mm
Thickness of film	0.01--0.1mm
Max production speed	150mm/min
Coating thickness error limit	<+5%
Tension range setting	10-150kg/entire width (constant tension)
Max extrusion	240kg/h
Diameter of screw	95mm
Compound cooling roller	510mm
Clearance of die lip	0.8mm
Total power	90kw
Power of extrusion converter	22kw
Power of extrusion motor	22kw
Power of winding converter	5.5kw
Power of winding motor	5.5kw
Heating zones within the die	5 zones
Max rewinding diameter	1300mm
Inside diameter of base material	76mm
Machine weight	18000kg
Overall dimension(L×W×H)	10000mm×8000×3500mm
Machine color	Customer demand
