| Name: | Anti-yellowing Test Machine | Test Standard: | ASTM-D1148, HG/T3689 |
|---|---|---|---|
| Applicable Industry: | Leather, Fabric, Shoe Material, Rubber Sole | Light Source: | Sunlight Bulb |
| Wavelength: | 280nm~400nm | Ultraviolet Intensity: | (25±0.4）W/ M2 |
| High Light: | Professional Test Equipment,Material Testing Equipment |
||

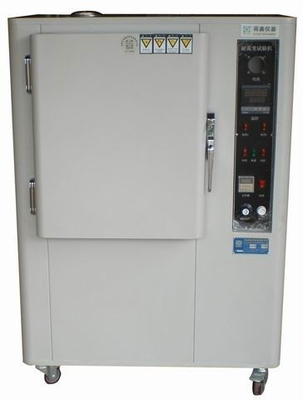

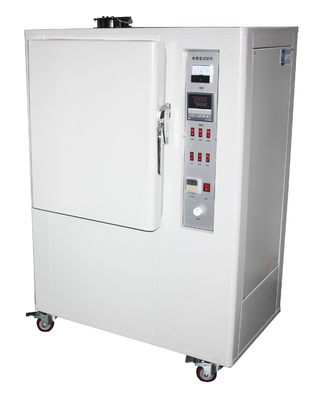

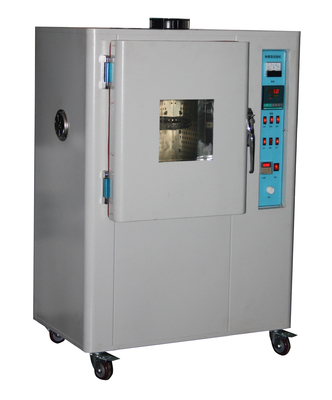

Light White Color Shoes Materials ASTM D1148 Sunlight Radiation Anti-Yellowing Test Machine A Method
1. Description:
This machine is used to simulate the yellowing degree of white or light-colored products after exposure to sunlight.
Main application products: White or light-colored Leather, fabric, shoe material, rubber sole
2. Design criteria: ASTM-D1148, HG/T3689
3. Specifications:
| Light source | Sunlight bulb (Power 300W, OSRAM) |
| Wavelength | 280nm~400nm |
| Ultraviolet intensity | (25±0.4)W/ m2 |
| Specimen rotary plate (shelf) height adjustable | φ30cm, Rotating speed: (3±1)r/min |
| Test area dimension (internal chamber) | 500mm×500mm×600mm |
| Temperature control range | RT+10℃～120℃ |
| Temperature accuracy | ±2℃ |
| Type of heating | hot air circulation |
| The distance between bulb and test piece | 250±2mm |
| Thermal Insulation | glass fiber |
| Optical density | Adjustable |
| Test Specimen size | (62±2)mm X 12mm |
| Timer | LED,0~9999h |
| Machine overall dimension | 100cm×65cm×117cm |
| Weight: | 135kg |
| Power | 1∮,AC220V,10A or customer specify |
| Standard configuration |
Maine machine 1 set OSRAM sunlight bulb 300W 1pc Stainless steel shelf 2pc Specimen rotary plate 1pc |
