Product Details:
Payment & Shipping Terms:
|
| Model: | GX-5023-B | Function: | Flexing Test Machine |
|---|---|---|---|
| Flexing Angle: | Max.90° （adjustable） | Counter: | LED, 0~999,999 |
| Volume: | 610 X 500 X 550 Mm | Weight: | 90kg |
| Power: | AC220V,3 A | ||
| High Light: | Rubber Tester,Rubber Testing Machine |
||
ROSS Rectangular Flexing Tester for Rubber , Sole and PU Materials
1. Product Name:ROSS Flexing Tester(Sample ROSS)
2. Product Model:GX-5023-B
3. Description:The tester is used for the rectangular flexing test of rubber, sole and PU materials. After continuous expansion and bending, examine the degree of damping, damage and crack.
4. Test standard:ASTM-D1052,ISO5423,4643, HG/T 2411-200
5. Technical parameters:
|
Sample |
150 x 25 x 5(thickness) mm |
|
Fixture |
6 sets, 12 pieces for one time |
|
Flexing angle |
Max.90° (adjustable) |
|
Test speed |
100±5cpm |
|
Counter |
LED display, 0~999,999 |
|
Volume |
580×600×320 mm |
|
Weight |
56kg |
|
Power |
1∮,AC220V,3 A |
6. Features
(1). It is suitable for rubber specimen.
(2). Test flexing, bending resistance capability of rubber products and synthetic leather.
(3). Max. Folding angle is 90 degree, and it can be tested 12 groups specimen at the same time.
(4). Able to custom according to customer’s specific requirement.
7. Standard Configuration:
Test machine 1 set；
Operation manual 1 piece；
Product warranty card 1piece
Certificate of approval 1piece；

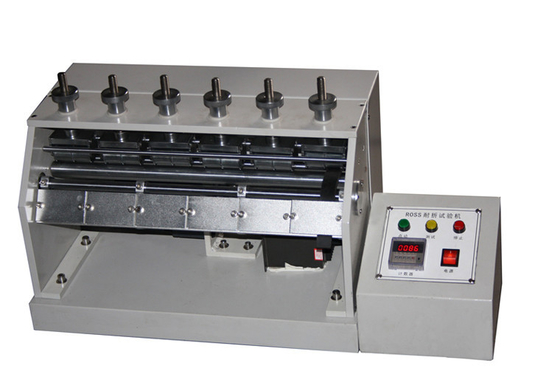

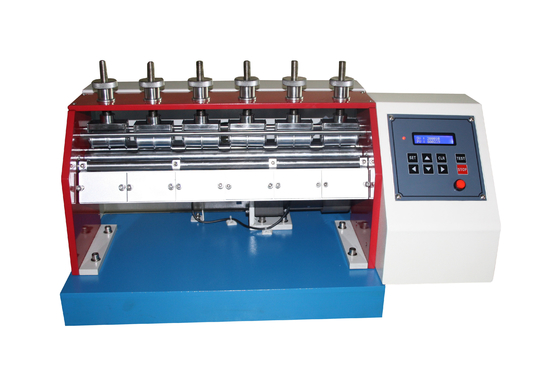

8. Product Picture:
