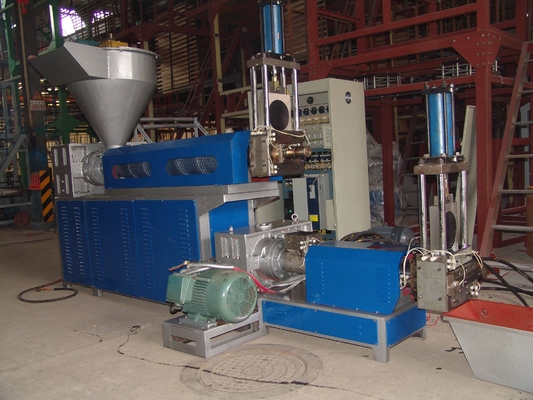

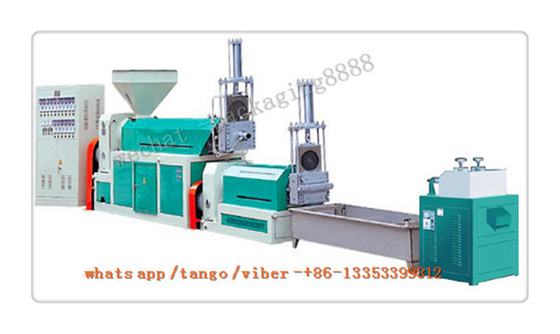

Film High Speed Plastic Recycling Machine Good Quality With Taiwan Screw CE Certificate​



Quick Detail:


High Speed Recycle Machine

1. Recycle waste shopping bag films such as pe ldpe hdpe lldpe
2. Recycle kinds of garments film such as pp clothes packing film
3. Recycle pp non woven fabric material
4. Recycle pp woven such as rice bag film and so on
5. All the industrial packing film if by pe pp all can be recycled conveniently


Description:


High Speed Recycle Machine make up by high quality screw barrel and gear box driven the machines ,that is long time to keep for good quality granules making .also we do some advantage for the machines producing ,which absorb the other countries technician ‘s good idea


Applications:


High Speed Recycle Machine that can recycle for kinds of waste materials in the industrial .that is very conveniently for use .Mostly match with the shopping bag ,printing manufacture and packaging film factory to save the whole production cost .Nowadays many waste film for courier bags that is large need for this granules making


Specifications :



It is used for recycling waste PP PE AND Scrap
Compressing Pellet Machine is the pelletizing equipment for waste hot plastic film thickness less than

2mm, including for pelletizing soft PVCPEpolystyrene polypropylene and other hot plastic waste product and film and for foamed polystyrene.





Process flow:

Conveyor→ PE film compactor→ Extruding system→ Die-head and High speed Net exchanging system→

water ring pelletizing machine → water tank → dewatering machine→ vibrating sieve→ Air Blower → Storage hopper

Detailed description ofPP PE pelletizing machine

1. Conveyor:convey PP PE film or flakes into compactor.

 2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the the production capacity high and stable.

 3.Extruding system:plasticizing material and exhausting gas.

 4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
 5.water ring pelletizing machine:cutting pellets in water.

 6.Water tank:cooling pellets.

 7.Dewater machine:make pellets dry.

8.Vibration sieve:remove bad pellet and keep good pellet.

 9.Air Blower:convey good pellets into silo.

 10:Storage silo:keep pellet.


1
belt conveyor
feed the clean films or bags into the cutting compactor

2
Metal detector
check whether there is metal in the films or bags, protect the blades of cutting compact and screws

3
Cutting compactor
cut the materials again and make materials shrink, then force feed the shrunk material into the extruder. for the same capacity, the power consumption is only 50% of the agglomerator.

4
Single screw extruder
for plasticizing the materials and exhausting the gas, it is made of 38CrMoAlA generally.

5

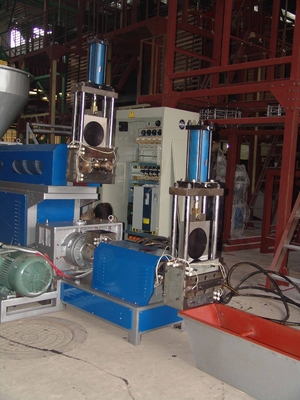

hydraulic screen changer
filter the impurities, improve the granules quality

6
Pelletizer
includes mould and pelleting blades, we can provide both vertical type and horizontal type

7

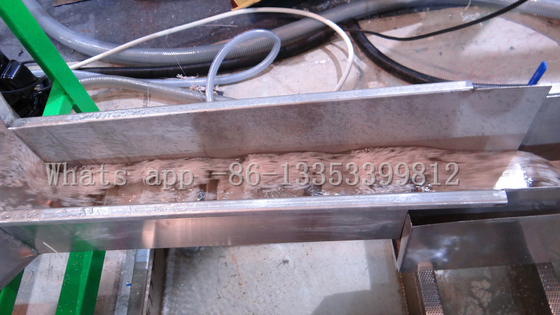

Water cooling tank:
use circular water for cooling the granules immediately after pelleting cut

8
Vertical dewatering machine
convey the granules helically from bottom to top, the rotary rotor and the stainless screen help to drain the water, and convey the granules out from the machine

9

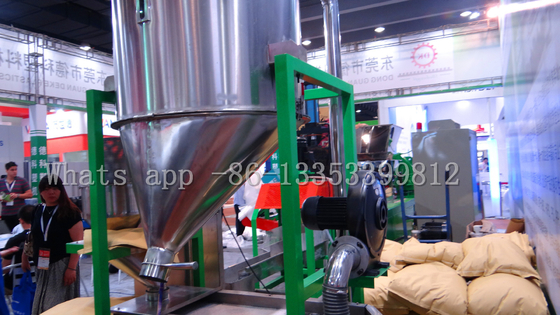

Blower system
use the blower to blow the granules to the storage silo through the SS304 pipe

10

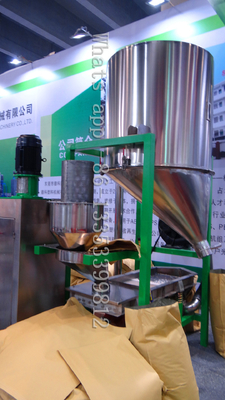

Storage silo
for storing the final films

11
Control system
use SUZHOU SIEMENS and China famous electrical parts

We are the manufacturer sepcialized in plastic processing machinery for many years.We have rich experience.
