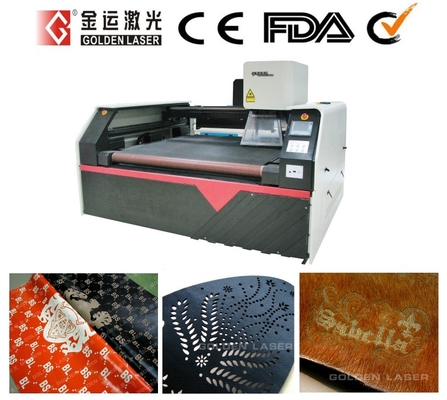

Leather Car Seat Laser Engraving Machine

Main technical data:

Model NO

ZJ(3D)-160100

Laser type

CO2 RF Metal Laser tube

Laser power

150W

Working area

1600mmX1000mm

Working table

Conveyor working table

Working speed

0-420000mm/min

Moving system

Servo motor, 5 inches LCD screen control panel

Repeating location accuracy

±0.05mm

Cooling system

Constant temperature water chiller

Power supply

AC220V ± 5% / 50Hz

Format support

AI, BMP, PLT, DXF, DST, etc.

Standard collocation

2 sets of 1100w exhaust fans, Foot switch.

Optional collocation

CO2 RF metal laser tube(70w / 100w), red light point system, Auto-feeder

Outstanding Features:

During the processing for leather, shoe material and cloth, traditional method is engraving and punching on materials which were already cut. These technics include complex procedures such as cutting, positioning, engraving and punching, which have problems of wasting time, wasting materials and wasting labor power.

However, ZJ(3D)-160100LD Multi-function Engraving Cutting Machine solves the above problems. It perfectly combines layout, engraving & punching, feeding materials together and saves 30% materials compared with traditional technics.

Equipped with laser cutting head, processing efficiency will be further improved.

Machine Specifications:

1. Germany Scanlab 3D dynamic Galvo head, scan area within one time could reach 400*400mm..

X.Y axis moving respectively, realizIng large-scale engraving cutting and hollowing on batch quantity of leather and textile material.

2. Conveyor working table, cooperating with auto-feeding system, which could realize the auto-processing on rolling material (engraving and punching on large-scale leather and textile material).

3. 150W CO2 RF Metal laser tube, laser beam quality is more stable, laser spot is more slim.

4.Compared with traditional process method, maximally reducing the material waste (the utilization of material could be increased by 30% than traditional process method).

5. With GoldenLaser self-developed software, Various formats are supported according to your requirements.

6.Besides,goldenlaser allows efficient and intelligent typesetting technology

7.Auto-cutting technology with CCD Camera edge-finishing, continuous feeding system, cutting square and line.

Laser power & working size be customized according to requirements

Features:

• Laser engraving. punching and hollowing with fast speed
• Germany 3D dynamic Galvo head. Laser spot diameter is 350μ m
• Ball screw driving system, more stable and higher precision
• Automatic shuttle table, maximally improving processing efficiency

Specifications:

1) 150W (Standard) CO2 RF metal laser (70W / 100W Optional). Laser output power and processing speed can be adjusted to maximize energy savings
2)3D dynamic galvanometer control system and Z axis automatic up and downensure the best results of processing.
3) Automatic shuttle zinc-iron honeycomb working table, large format working area.
4) Suitable for high speed engraving and punching large format fur, leather, fabrics, etc; also engraving cutting small items like leather jeans labels.
5) Use-friendly 5 inches LCD systems and off-line digital motion control system, high degree of automation.
6) Complete exhaust and filtering systems, good exhaust effects.
7) Foot switch for easy operation.

Technical Parameter:

Working Area:

900mm× 450mm

Laser Type:

CO2 RF Metal laser tube

Laser Power:

150W

Working Table:

Automatic shuttle zinc-iron honeycomb working table

Processing Speed:

0-420000mm/min

Repeating Location Accuracy:

± 0.1mm

Motion System:

3D dynamic off-line motion control system, 5 inches LCD Panel

Cooling System:

Constant temperature water chiller

Power supply:

AC220V ± 5% / 50Hz

Format support:

AI, BMP, PLT, DXF, DST, etc

Standard configuration:

Two sets of 1100W exhaust fans, Foot switch

Optional configuration

CO2 RF metal laser tube (70W / 100W), Red light pointer

Working size and laser power can be customized according to your requirement.
